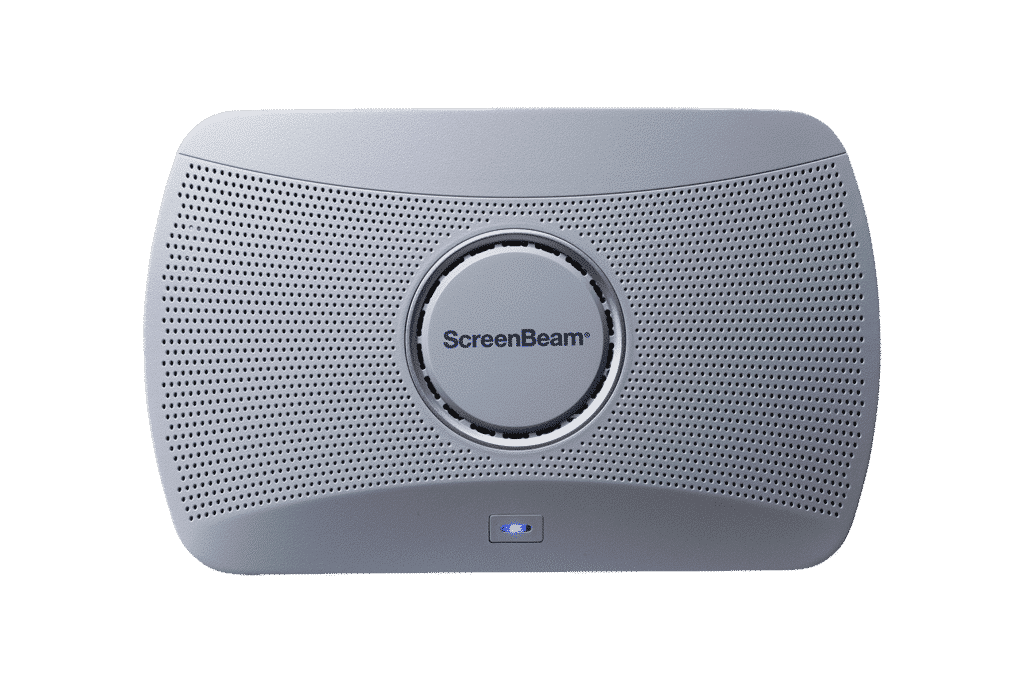

ScreenBeam 1000 EDU Gen 2
Wireless Display Receiver
Only available for accredited K-12 educational institutions.
The ScreenBeam 1000 EDU Gen 2 is our next-generation smart wireless presentation platform designed for modern classrooms. It offers more than wireless display – empowering teachers to move freely, engage students, and get the most out of their technology investments.
Product Highlights
- Wireless display receiver for Windows, MacOS, iOS and ChromeOS
- Duplicate screen or extend mirroring up to 4K resolution
- Compatible with HID touchscreens for Windows Miracast touchback
- Integrated widgets for IFP including Whiteboard, Name Picker, Timer and more…
- Moderate student Windows & Chromebooks for wireless display with Orchestrate Lite
- Digital signage player for externally hosted HTML5-compatible content
- Deploy, manage, oversee, and log usage activities with ScreenBeam CMS Enterprise
ScreenBeam Essential Tools
Essential tools for the K-12 classroom come standard with every ScreenBeam 1000 EDU Gen 2.
No extra cost, no subscription.
App-less and dongle-less screen mirroring
Screen sharing from any device without the need to download an app or keep dongle nearby. ScreenBeam leads with OS-native Wi-Fi Miracast, AirPlay and Google Cast for familiarity and mitigate user training.
Extended desktop
Windows and macOS users can mirror desktop or extend screen to ensure content privacy.
Touch display support
Windows users can markup content directly on room displays, instantly capturing changes in Microsoft Office 365 applications.
Integrated Whiteboard
An integrated Whiteboard application enables a collaborative experience that launches directly from the interactive flat panel display without changing sources, pushing buttons or re-connecting to the display.
Name Picker & Timer
Tools frequently used by teachers to help engage students, randomly select students and time projects and tasks. These integrated applications are available for classrooms with IFP display.
Orchestrate (Lite)
Basic orchestration capabilities for Windows and Chromebooks. Teachers can easily and securely preview and approve student screen sharing for a moderated experience.
Multi-view
Teachers can display up to four student device screens simultaneously making it easy for classroom collaboration and discussion.
Signage Player
Idle displays in classrooms and meeting spaces can be optimized to convey information with integrated HTML-based digital signage capability.
Centralized Management
ScreenBeam CMS Enterprise included for monitor, manage, and update.
Compatible OS/Device
Miracast: Windows 11/10 and Android
Airplay: MacOS 11+ and iOS 13+
Google Cast: ChromeOS/Chrome 98+ and Android 8+
Audio & Video Specifications
Native protocol: Miracast, Airplay, Google Cast
Video: H.264 compression
Audio: LPCM 2.0
Resolution: Up to 4K602
Protection: HDCP 2.x3
Network Specifications
Ethernet: 1000Base-T RJ-45 LAN
Wireless (Miracast P2P1 & Wi-Fi Hotspot): 802.11ac 3×3 MIMO Dual-band 5GHz
Wireless (Infrastructure): 802.11ac 2×2 MIMO 2.4GHz and 5GHz (DFS)
BLE (Discovery): 2402-2480MHz
Authentication Protocol: IEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, EAP-TLS
Hardware Specifications
Interfaces: 1 x HDMI® Output, 1 x RJ-45, 1 x USB 3.0 Host Type-A, 2 x USB 2.0 Host Type-A, 1 x Analog 3.5mm Audio, 1 x DC Power Jack
Power: Input 12VDC 3A, Consumption: 8.4W Typical 24.8W Peak
Temperature: Operating 0* – 40*C (32* – 104*F), Storage -20* – 85*C (-4* – 185*F)
Humidity: Operating 20-80% non-condensing, Storage 10-90% non-condensing
Dimensions
Size: W 8.66 in x D 5.66 in x H 1.47 in (220mm x 144mm x 37.5mm)
Weight: 1lb 0oz (453.5g)
Mounting Option
Wall mount. Magnetic mounting kit. VESA 75x75mm.
Regulatory and Compliance
Compliant Standards: FCC, RED, RoHS, UL
Warranty
Limited three-year manufacturer hardware for the product purchased after January 2nd, 2022.
- Miracast P2P requires device with Wi-Fi and Intel 802.11 AC/AX Wi-Fi or equivalent is recommended.
- Display resolution and quality depend on Wi-Fi and or LAN network condition.
- Content protection only available for Miracast protocol.
| Document Name | Download |
|---|---|
| User Manual | Download |
| Quick Start Guide | Download |
| Wall Mounting Template | Download |
| Magnetic Mounting Template | Download |
| Case Drawing | Download |
Current Release
Version: 11.2.17.7
- Release date: 2025, Jan 27
- Changes since 11.2.17.1
- Improvements and fixes
- Improved stability for handling Orchestrate errors
- Improved video quality for Miracast over LAN after a Wi-Fi network drop or roam
- Fixed bug where receiver status stays busy after exiting touchscreen widget
- Fixed Whiteboard touchscreen widget is not responsive
Previous Releases
Version: 11.2.17.1
- Release date: 2024, Nov 04
- Changes since 11.2.15.8
- New features
- Orchestrate Lite – complimentary moderation tool for teacher to manage student screen sharing
- [Beta] Name Picker – touchscreen widget
- [Beta] Timer – touchscreen widget
- Improvements and fixes
- Improved Orchestrate stability and bug fixes
- Enhanced TLS security
- Added network interface bandwidth report for CMSE
- Improved Chromecast mirroring stability
- Fixed signage playback of embedded video sometimes skips file
- Fixed receiver occasionally restarts on its own or upon device connection
- Fixed unnecessary outbound request to server
Version: 11.2.15.8
- Release date: 2024, Jun 04
- Changes since 11.2.15.6
- Improvements and fixes
- Fixed compatibility issues with some interactive touchscreen displays (not working on 11.2.15.6).
- Fixed issue where occasionally the PIN fails to appear for Airplay or Miracast over the network.
- Fixed issue in Orchestrate when user beams the receiver may crash.
Version: 11.2.15.6
- Release date: 2024, Mar 20
- Changes since 11.2.15.2
- Improvements and fixes
- Fixed Windows Miracast audio/video quality degradation issue when user extends screen has a plain background and hidden taskbar while playing a video/audio on the laptop’s main desktop. Audio issue can either lag behind or pop.
- Fixed an issue where a Miracast connection may show the last image from the previous session.
- Fixed an issue where the onscreen clock/date always appear even when disabled.
Version: 11.2.15.2
- Release date: 2024, Jan 20
- Changes since 11.2.15.0
- Improvements and fixes
- Fixed Airplay mirroring stuttering audio when playing online video.
- Fixes bugs related to ScreenBeam Whiteboard.
- Fixed over-the-air firmware update fails from local management browser.
Version: 11.2.15.0
- Release date: 2023, Dec 30
- First release of ScreenBeam 1000EDU Gen 2 receiver
- Native screen mirroring protocol; Miracast, Airplay mirroring, and Google Cast.
- Native Whiteboard app by ScreenBeam – works with most interactive touch flat panel.
- Support HTML5 digital signage content.
- Remote management with ScreenBeam CMS Enterprise 4.3.10.9 (and later)
